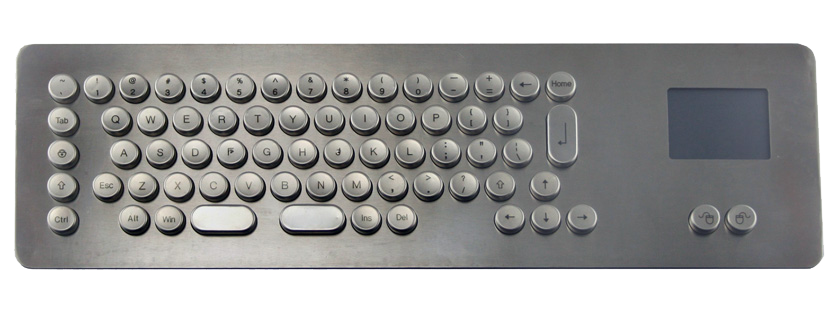

MK69 Series Touchpad Metal Kiosk

KBA-MK69B-MU

Key Features:
• Top bezel is made from 2mm thick stainless steel
• Dust free, waterproof, or optional colored plastic key
• Tactile key response with 4mm of travel
• Waterproof key switches
• Laser printed key legends for superior durability
• Available with trackball and touchpad pointing devices
• Programmable key layout
• USB interface
• Customized layouts available on request

Electrical Specifications:
• Power supply: +5Vdc from data cord
• Current < 100mA

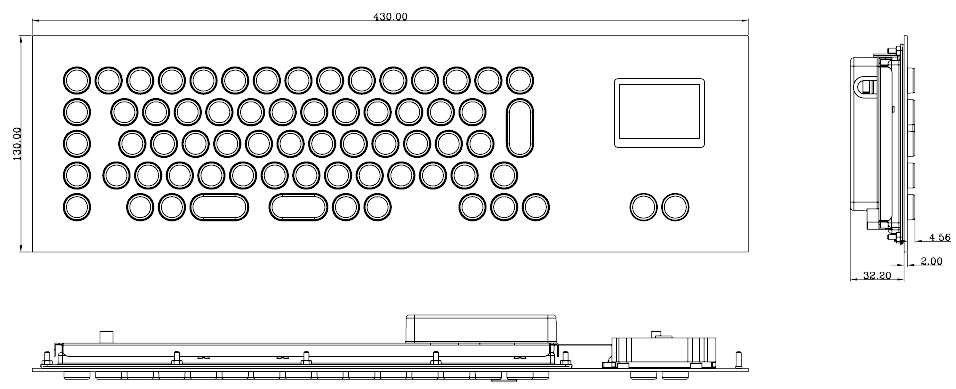

Mechanical Specifications:
• 69 total keys
• Key travel distance: 0.157 in (4mm)
• Key force: 65g (single key) / 150g (double key)
• Key stroke life: 10 million cycles
• Protection level: IP 65

Other:
• Storage temperature: -40C to +60C
• Operating temperature: 0C to +50C
