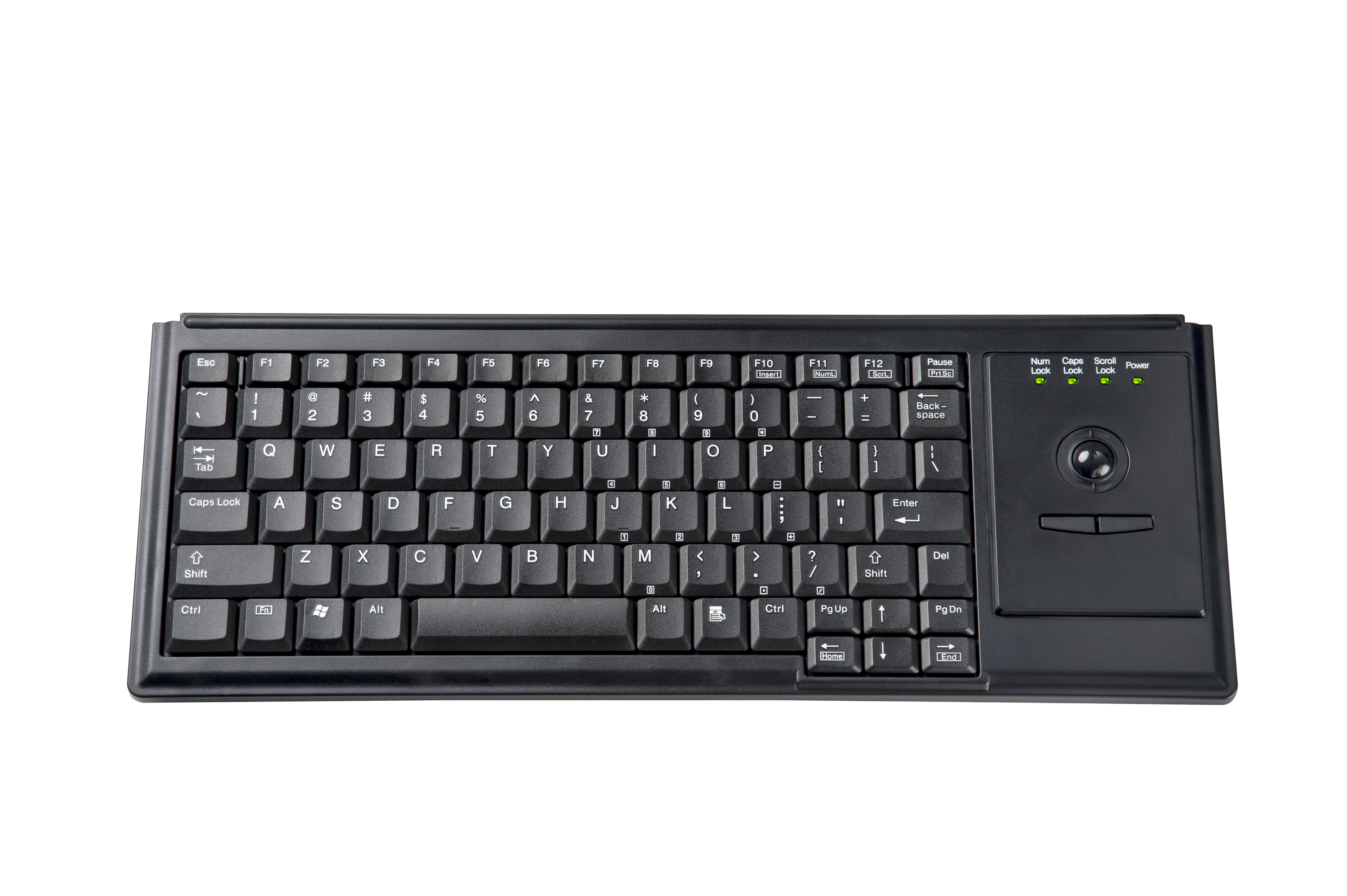

TG82TB Small Form Factor

KBA-TG82-TBUUS  82 Key, Low profile, USB, Trackball

Key Features:
•  Scissor technology
•  Small measurements
•  Integrated trackball device and 2 button mouse
•  Light weight
•  USB or PS2 interface

Electrical Specifications:
•  Power supply: +5Vdc from data cord
•  Current input: 100mA max

Trackball Data:
•  Ball size: 16mm
•  Resolution: 103 dpi

Interfaces:
•  USB or PS2

Mechanical Specifications:
•  Number of keys: 82
•  Key strokes life: 5 million

Other:
•  Storage temperature: -40C t +60C
•  Operating temperature: 0C to +50C
•  Operating humidity: 20% - 90%
•  Dimensions: 14.6 in x 5.5 in x 0.8 in (370 mm x 139 mm x 20 mm)
•  Weight: 1.35 lbs (612 g)
