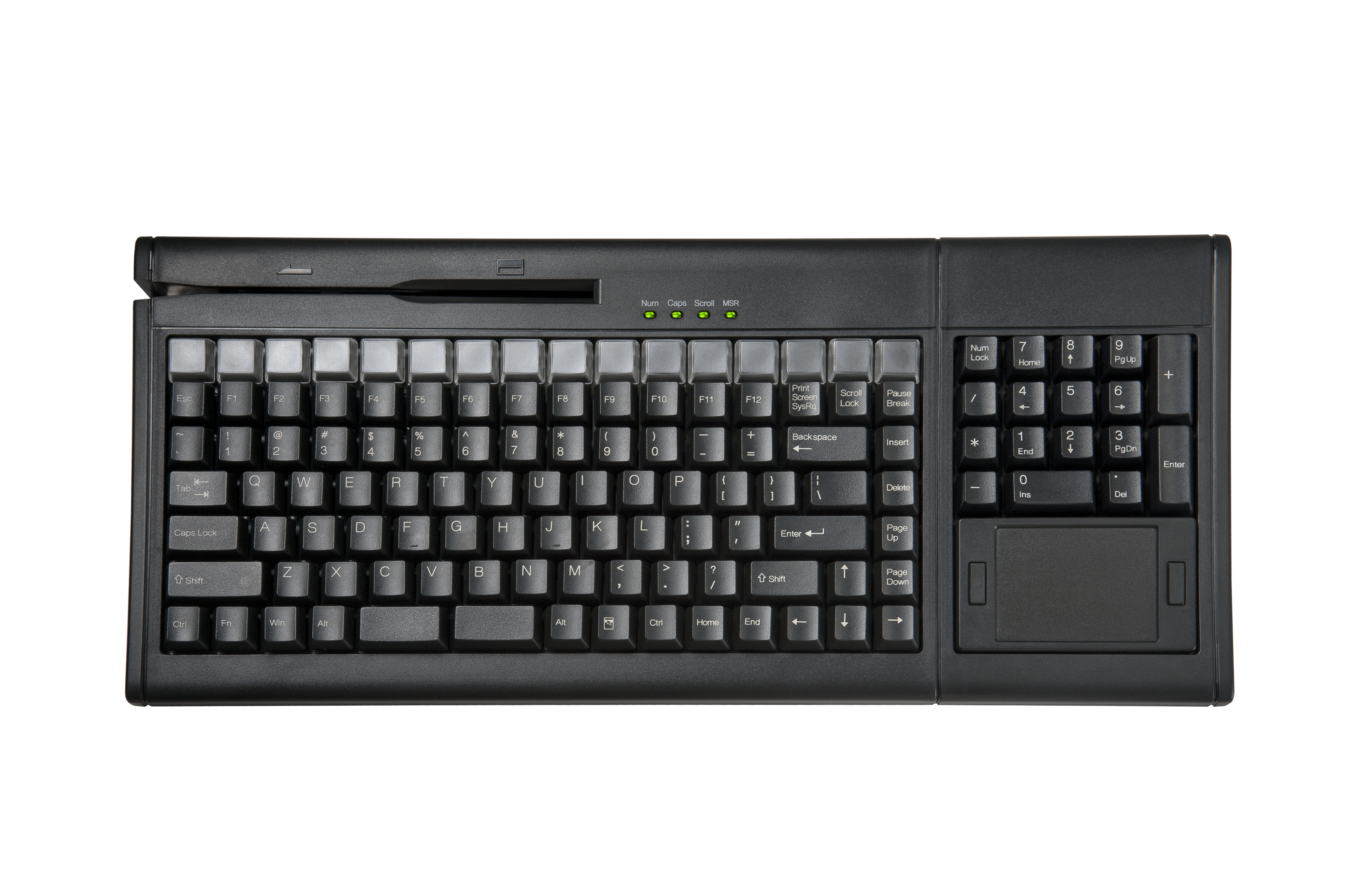

TG121MT Point of Sale

KBA-TG121MT-MP  121 Key, Touchpad, 3 track MSR, PS2
KBA-TG121MT-MU  121 Key, Touchpad, 3 track MSR, USB

Key Features:
• 16 programmable keys
• QWERTY section is designed with POS graded membrane keys
• Numeric section is designed with mechanical key switches
• Magstripe reader settings are programmable
• Programmable functions are powered by the Matrix Maker software available for download from our website
• Keyboards are backed by 0.05 in thick metal frame
• Relegendable keycaps (1x1 and 2x1) are available
• Supports country layouts
• Integrated touchpad
• Detachable cable using tough RJ45 connector
• Available in USB or PS2 interface

Programming Capabilities:
• Programmable keys can be programmed with 255 characters
• All data can be retained for no less than 100 years without additional battery
• Does not require a TSR program and hence avoids application software crashes
• Multi-layer (or multi-level) programming
• Ability to include variable time delay in each programmed string
• Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected
• USB programming through the USB HID interface requiring no drivers; PS2 driver included with the Matrix Maker software installation

MagStripe Reader Features:
• Compiles with ISO 7812, IBM standards, AAMVA, JIS-2
• Support multi-country code settings
• Support programmable MSR settings for the header, seperator, sux and prex, track sequences, and more
• Track 1: 210BPI with max 76 characters
• Track 2: 210BPI with max 107 characters or 76BPI with max 37 characters
• Track 3: 210BPI with max 107 characters
• Card swipe speed: 10 - 100 cm/s
• 500,000 swipe cycles
• Speed: 3-125 ips at 75 BPI; 3-50 IPS at 210BPI

Electrical Specifications:
• Power supply
USB: +5Vdc from data cord
PS2: +5Vdc from data cord
• Current input: 100 mA max

Mechanical Specifications:
• Total travel: 0.16 in +/- 0.02 in (4mm + 0.4mm)
• Pre-travel: 0.08 in +/- 0.02 (2mm + 0.6mm)
• Peak load before make: 2.12 oz +/- 0.71 oz (60g +/- 20g)
• Key strokes life:
QWERTY section: 10 million
Numeric section: 50 million
• Composite device (USB)

Touchpad:
• Active area: 2.46 in x 1.83 in (63.5mm x 46.5mm)

Other:
• Storage temperature: -40C to +60C
• Operating temperature: 0C to +50C
• Operating humidity: 20% to 90%
• Dimensions: 17.3in x 7.87in x 1.73in (439mm x 200mm x 44mm)
• Weight: 3.42 lbs (1.550kg)
