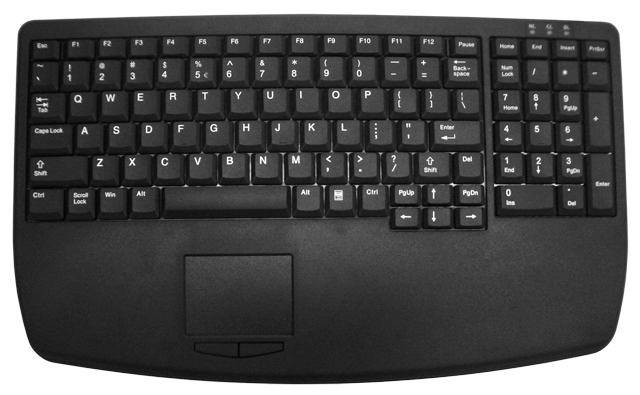

TG103 with Touchpad Small Form Factor

KBA-TG103-BTUNUS  103 Key, Low profile, USB, touch pad

Key Features:

•  Scissor technology
•  Small measurements
•  Integrated touchpad pointing device
•  Light weight
•  USB interface

Electrical Specifications:
•  Power supply: +5Vdc from data cord
•  Current input: 100mA max

Touchpad Active Area:
•  2.5 in x 1.8 in

Mechanical Specifications:
•  Number of keys: 103
•  Key strokes life: 5 million
•  Composite devise (USB)

Other:
•  Storage temperature: -40C t +60C
•  Operating temperature: 0C to +50C
•  Operating humidity: 20% - 90%

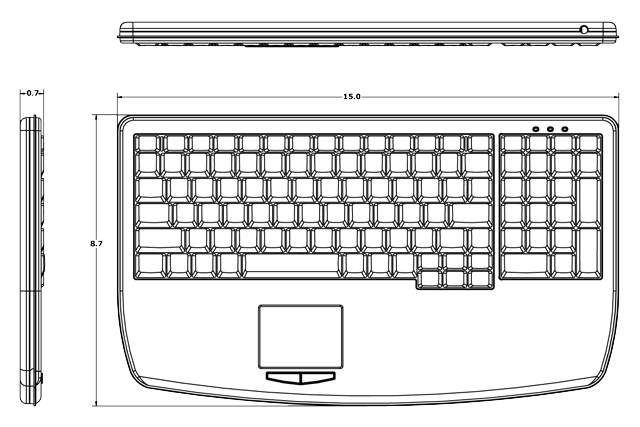

• Dimensions: 14.9 in x 8.7 in x 0.7 in (381 mm x 221 mm x 18 mm)
•  Weight: 1.94 lbs (880 g)
•  RoHS compliant
