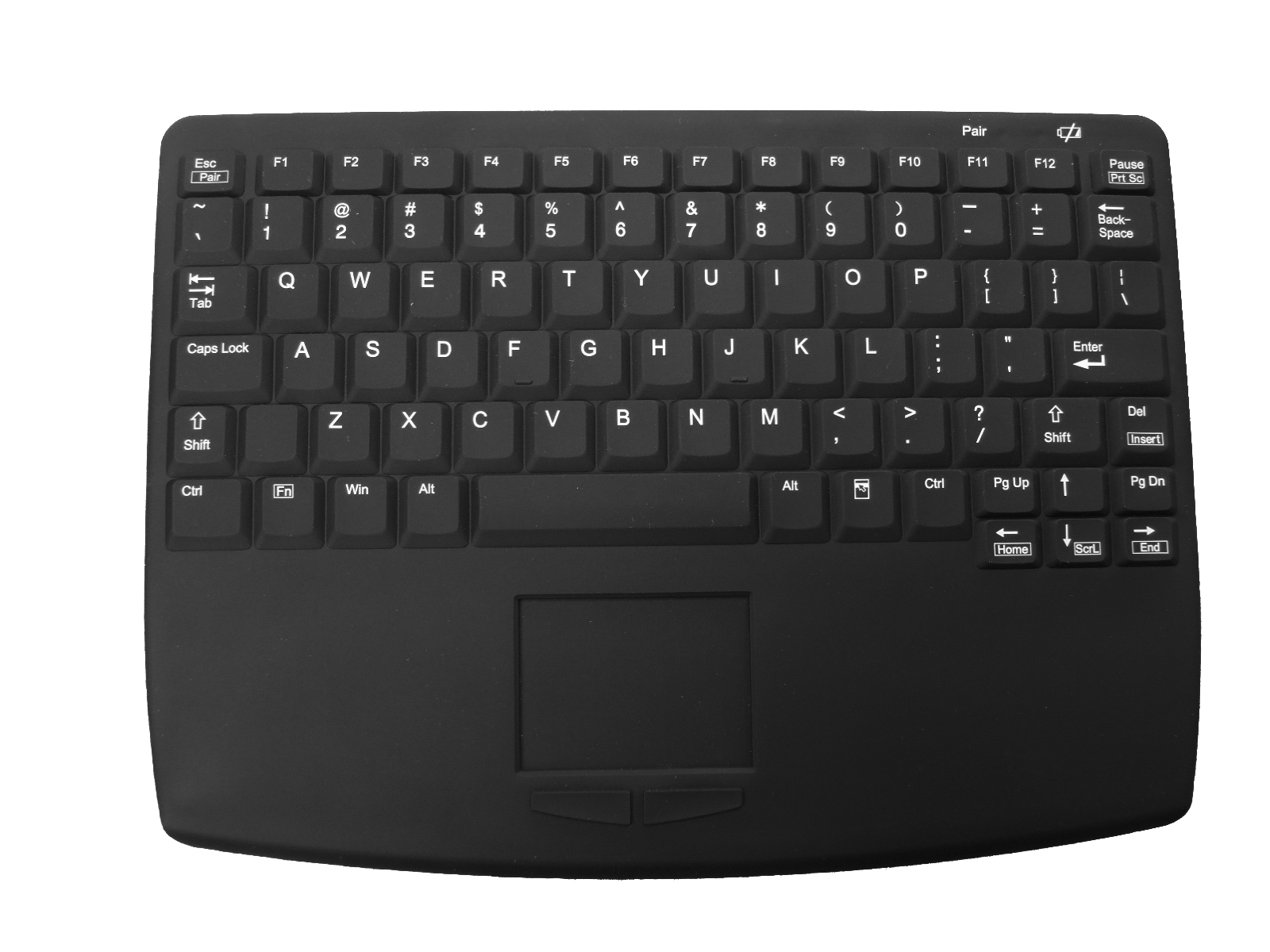

CK82S - Center Touchpad

KBA-CK82S-BCUN-US   USB

Features:

  • 82 keys
  • Cleanable, sealed keyboard
  • Withstands most hospital grade cleaners
  • Wrapped in silicone skin: IP68 rated
  • Compact notebook style layout with VESA mounting holes on the bottom
    (USB Only)
  • 10 million actuations per key

Touchpad Active Area:

  • 2.5 x 1.8 in (62.5 x 45.6 mm)

Specifications:

  • Storage temperature: -40 C to +70 C
  • Operation temperature: 0 C to +70 C
  • Supply volatage: 5V +5%/-10 through USB port
  • Current consumption: Max 100mA

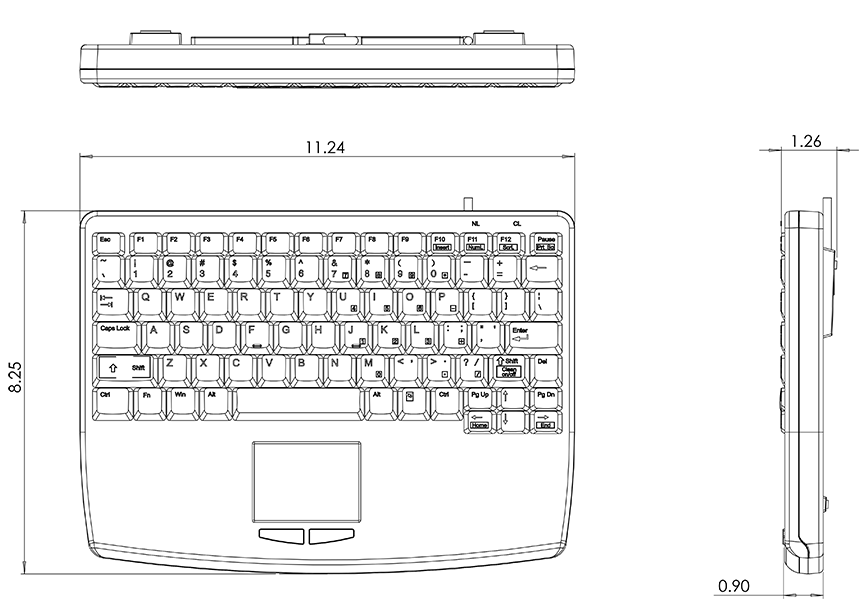

  • Dimensions: 11.24 x 8.25 x 1.26 in (285.50 x 209.55 x 32.00 mm)

Interface:

  • USB
  • Wireless

Industrial Rating:

  • CE
  • FCC
  • RoHS

Clean Key Instructions:

  • Fn + Shift (Clean on/off)
  • "Clean" LED will illuminate, indicating cleaning mode
  • To turn off, repeat step 1
  • "Clean" LED will turn off, indicating typing mode
