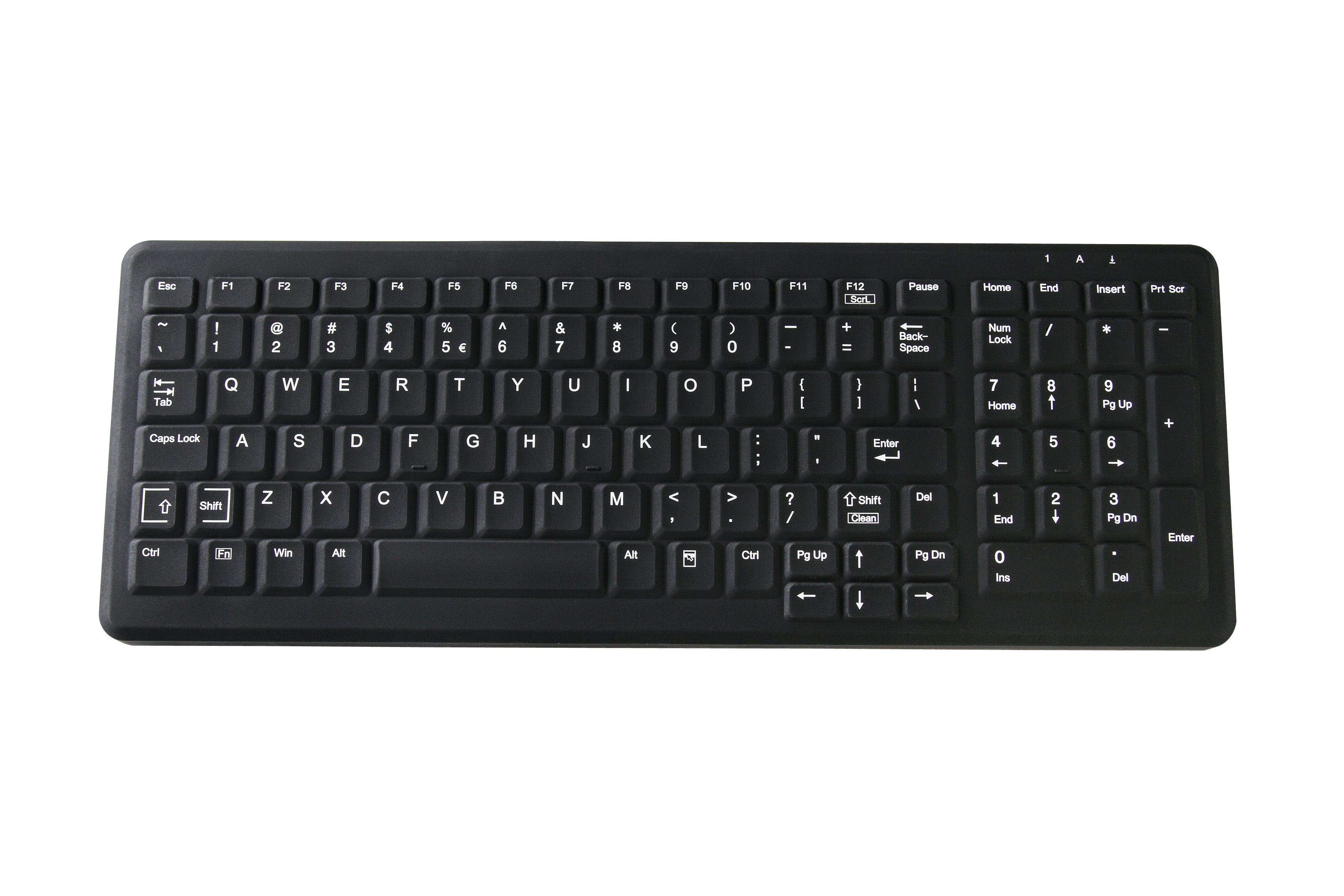

CK103S

KBA-CK103S-BNUW-US     Black, USB, White Backlighting
KBA-CK103S-WNUG-US    White, USB, Green Backlighting

Features:

  • 103 keys
  • Cleanable, sealed keyboard
  • Withstands most hospital grade cleaners
  • Wrapped in silicone skin: IP68 rated
  • Compact notebook style layout with VESA mounting holes on the bottom
  • 10 million actuations per key
  • Scissor key switch technology
  • Dimensions: 14.67 x 5.41 x 0.86 in (372.6 x 137.6 x 21.82 mm)
  • Optional backlighting available

Specifications:

  • Storage temperature: -40 C to +70 C
  • Operation temperature: 0 C to +70 C
  • Supply volatage: 5V +5%/-10 through USB port
  • Current consumption: Max 100mA

Interface:

  • USB

Industrial Rating:

  • CE
  • FCC
  • RoHs

Clean Key Instructions:

  • Fn + Shift (Clean on/off)
  • "Clean" LED will illuminate, indicating cleaning mode
  • To turn off, repeat step 1
  • "Clean" LED will turn off, indicating typing mode
