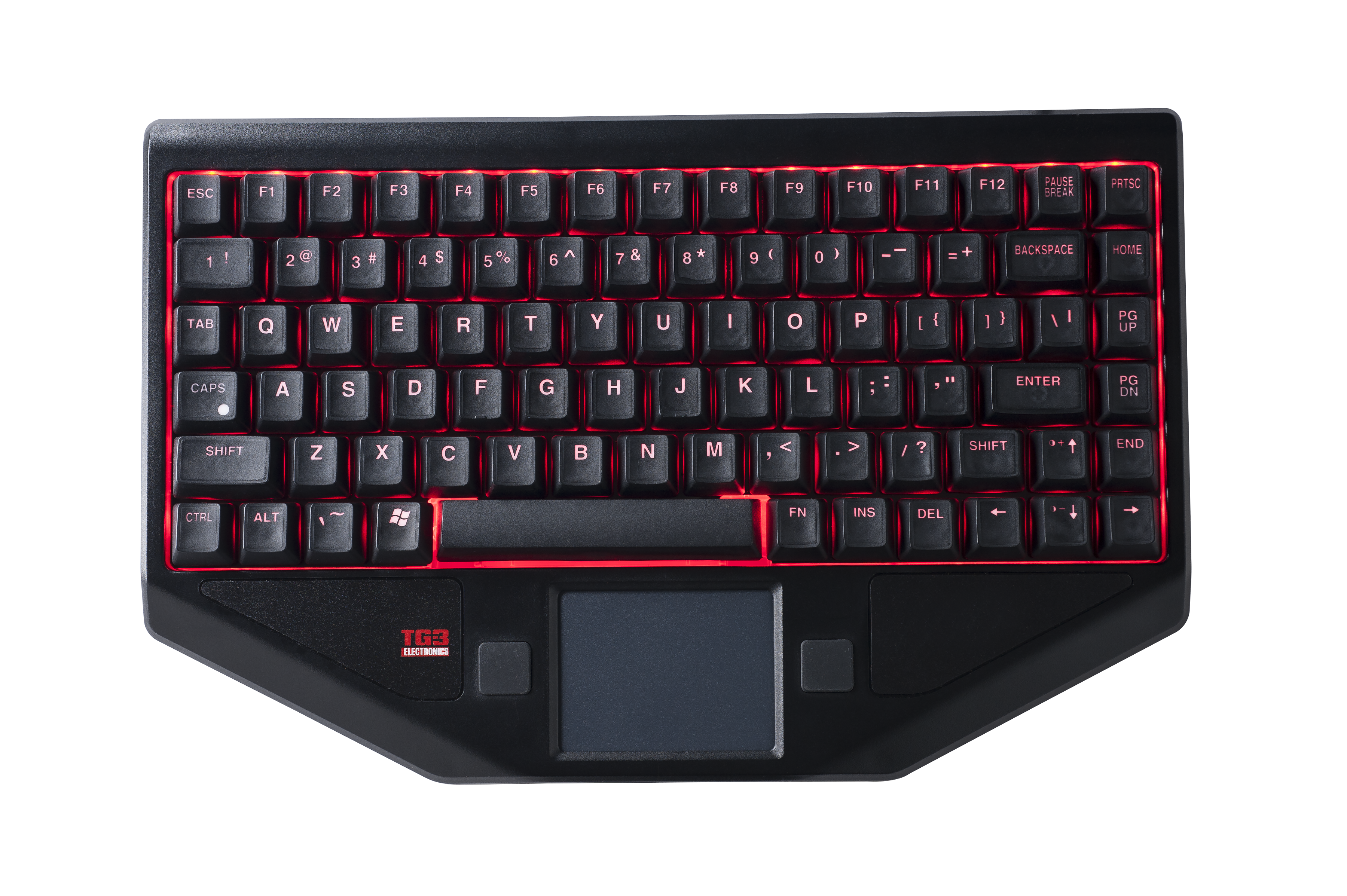

Backlit BLTX Series

KBA-BLTX-USNNR-US     6 Ft. Straight Cord, USB
KBA-BLTX-UCNNR-US     6 Ft. (3 Ft. retracted) Coiled Cord, USB

Key Features:
• Low cost, ultra rugged keyboard
• Low profile with ergonomic design and feel
• Tactile full travel key switches
• Red LED backlighting rated for the life of product
   (200,000 hr LED’s)
• Embedded multi-media functionality
• Chemical resistant engineered plastic resin housing and keycaps
• Sealed product to prevent water intrusion (Mil Std 810 compliant)
• Splash proof touchpad with 2 sealed mouse buttons
• FCC/UL/CE and RoHS compliant
• Multiple standard mounting options

Mechanical Specifications:
• 83 key

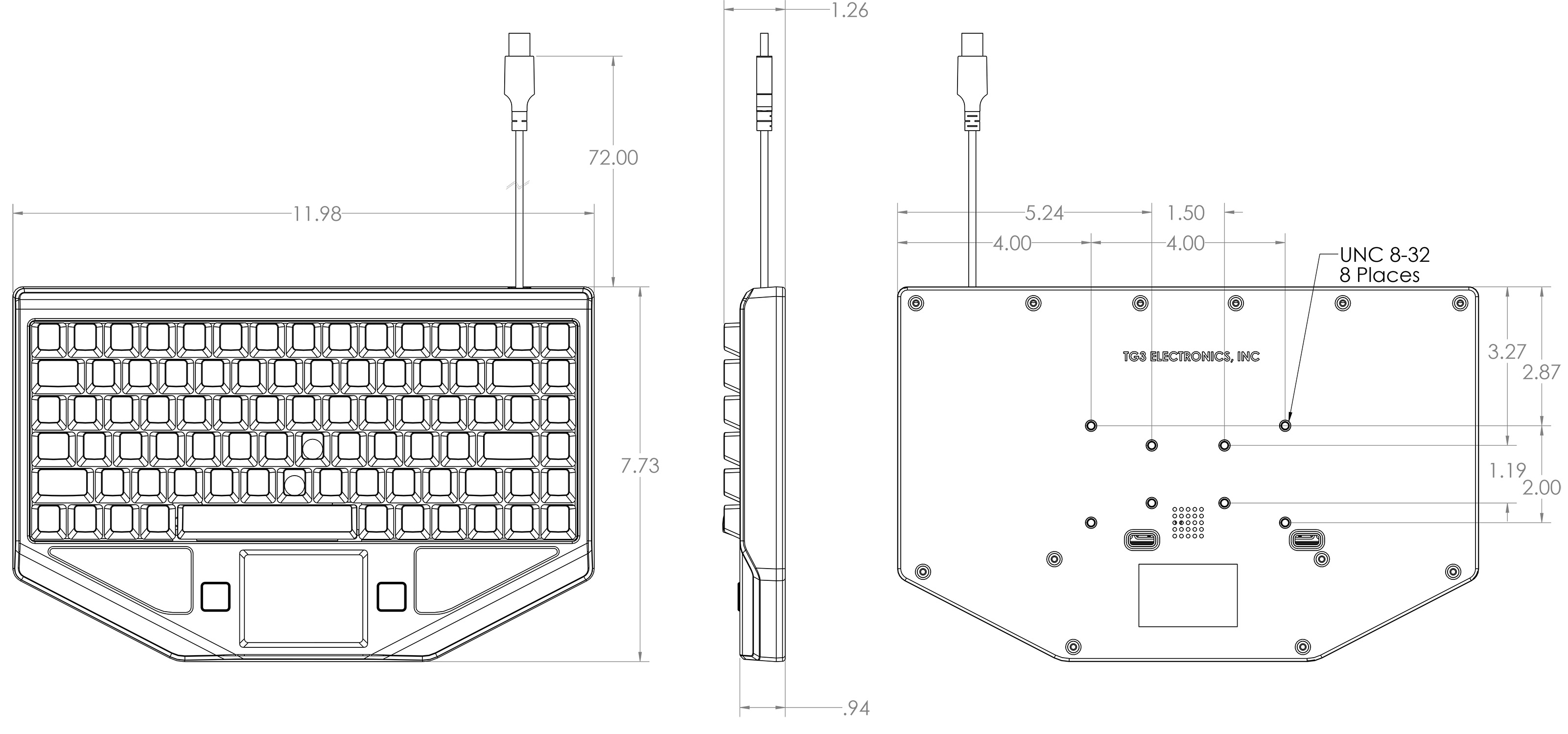

• Overall dimensions: 12” x 7.75” x 1.25”
• Weight: 2lbs
• 10 million cycle key switches
• Temperature: Storage: -55C to +85C; Operating: -40C to +70C

Electrical Specifications:
• +5vdc @ 220mA typical with red backlighting
• Interface: USB
• Radiated immunity: 20 volts/meter
• Dimming has 8 levels of intensity controlled by “Fn” + “0” - “7” keys or “Fn”
   Up/Down” cursor keys
• x/y position resolution: 500 points/inch (20 points max)
