Backlit BLH Series

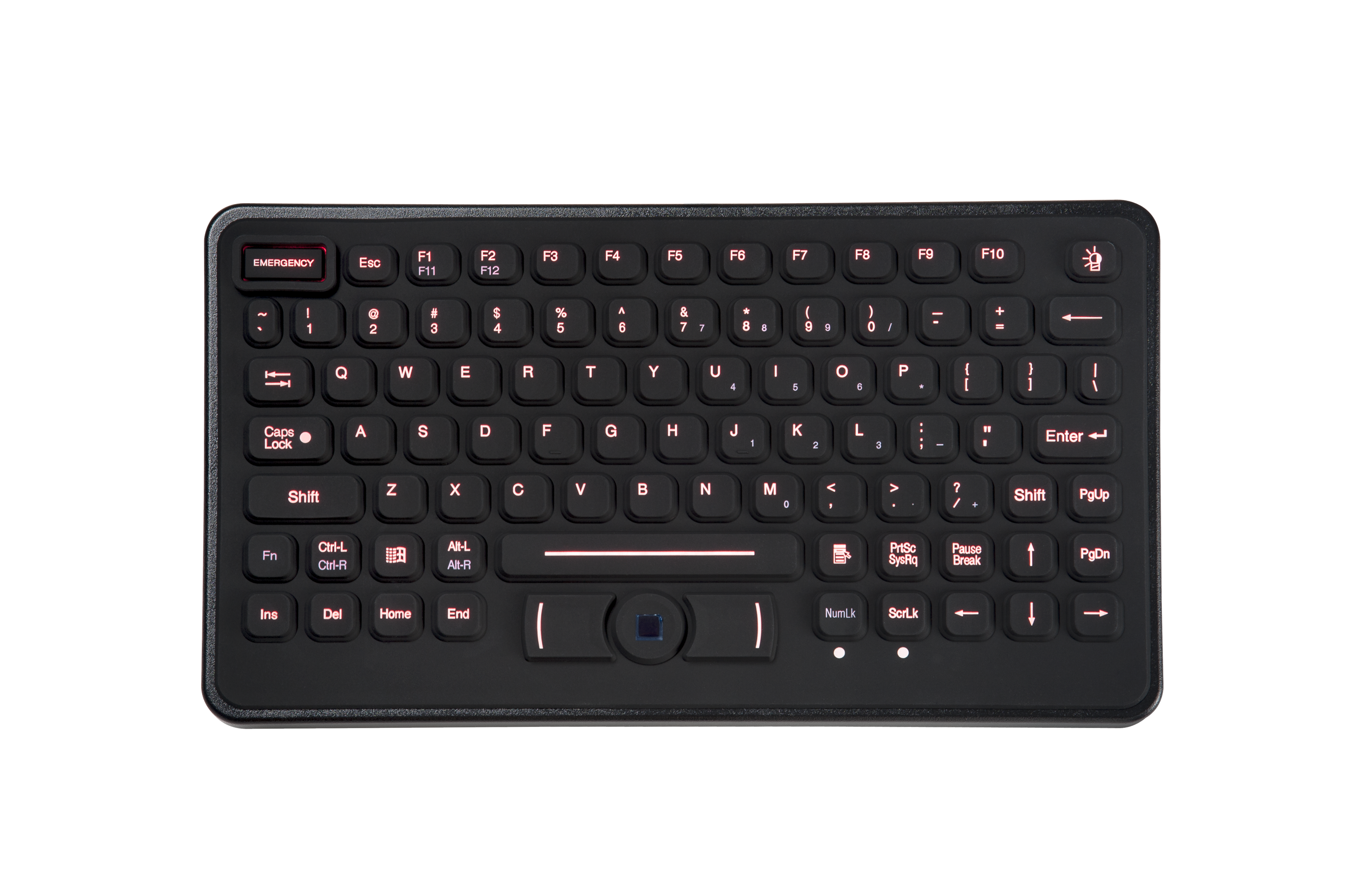

KBA BLH-5RU 86 Key, Backlit, NEMA 4, Pointing Device, USB

Key Features:
• Very rugged integrated pointing device
• Special “Emergency” or "Clean" key which, when pressed, sends a signal of
   Shift + F1 and is illuminated brighter than other keys for 15 seconds
• Meets NEMA 4 requirements
• Fully customizable
• Low cost, low prole with full size keys
• Tactile feedback
• LED backlighting good for life of keyboard
• Black keypads with bold legends
• FCC, UL, and CE compliant

Electrical Specifications:
• +5V/DC @ 220mA typical withred backlighting at maximum brightness.
   Current consumption depends on LED color; consult factory for more details
• Interface: USB
• Radiated immunity: 20 volts/meter
• Dimming has eight levels of intensity controlled by a single button

Environmental Specifications:
• Storage temperature: -55C to +85C
• Operating temperature: -40 to +75C
• Humidity: 100%

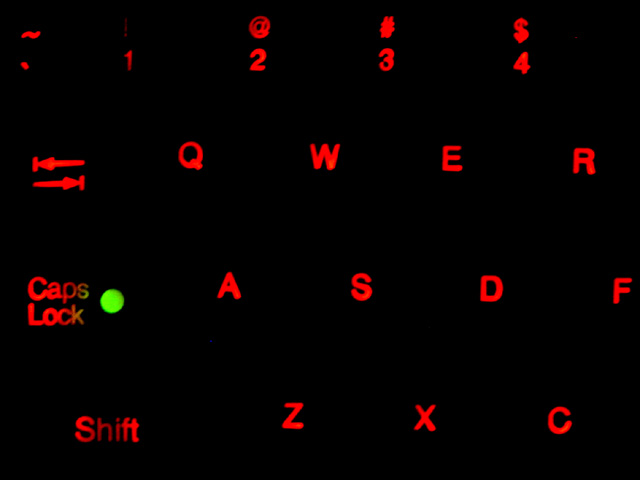

Backlighting:
• Bold backlighting
• LED backlighting good for life of product
• Red standard with other colors available
• Dimming: 8 levels of brightness including “0”
• 200,000 hr LEDs = 22 years continous “on”

Mechanical Specifications:
• 82 key compact design

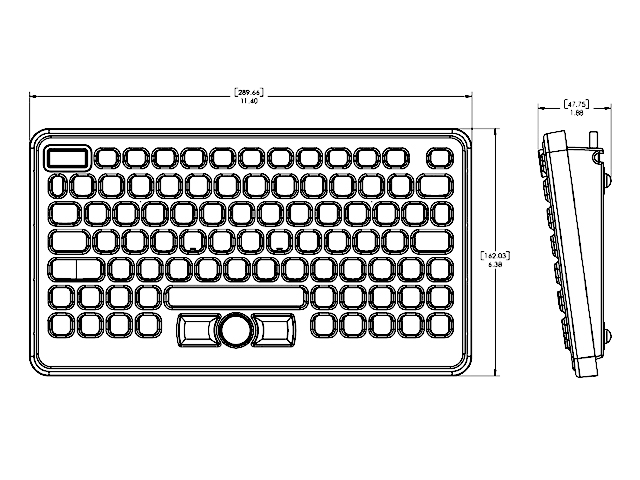

• Overall dimesions: 12” x 6” x 1.5
• Weight: 2lbs
• 5 million cycle keyswitches with gold contacts
• Plastic injection molded top for ease of customizing mounting techniques
• Integrated 2 button rugged sealed optical pointing device

Industrial Ratings:
• NEMA 4
• UL 60950
• CE
• FCC Class B
