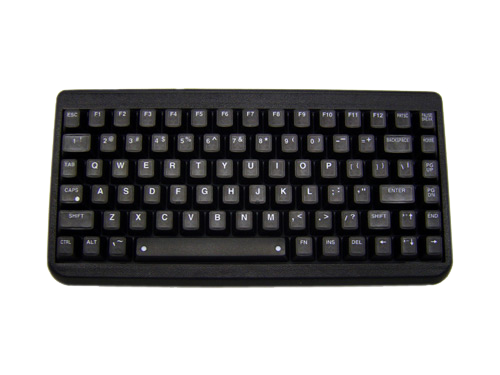

Backlit BL82 Series

KBA BL82-5RBIVS 82 Key, Backlit, PS2
KBA BL82-5RBUVS 82 Key, Backlit, USB

Key Features:
• Low profile, full key size
• Tactile full travel keyswitches for superior feel vs. rubber keys
• LED backlighting good for life of product (200,000 hr LED’s)
• Standard red backlighting, other available colors
• Black keycaps with backlit legend - unique 2 shot and sublimated process
• Water resistant splash gaurd (Mil Std 810 compliant from top side)
• FCC, UL, CE compliant
• Splashproof, backlit keyboard
• Large backlight characters for viewing

Mechanical Specifications:
• 82 key compact disk

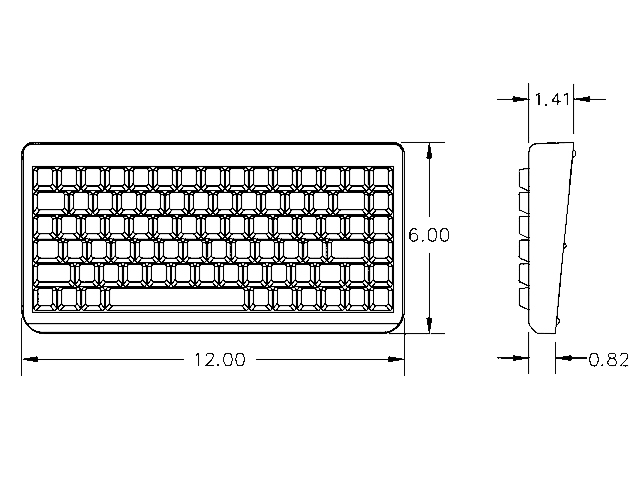

• Overall dimensions: 12” x 6” x 1.5”
• Weight: 2lbs
• 50 million cycle keyswitches with gold contacts
• Temperature: Storage: -55C to +85C, Operating: -40C to +70C
• Plastic injection molded top with metal bottom for ease of customizing mounting techniques

Electrical Specifications:
• +5vdc @ 220mA typical with red backlight. Current consumption depends on LED color. Consult factory for details.
• Interface: PS/2, USB, custom
• Radiated immunity: 20 volts/meter
• Dimming has 8 levels of intensity controlled by “Fn” + “0” - “7” keys or “Fn” Up/Down” cursor keys
