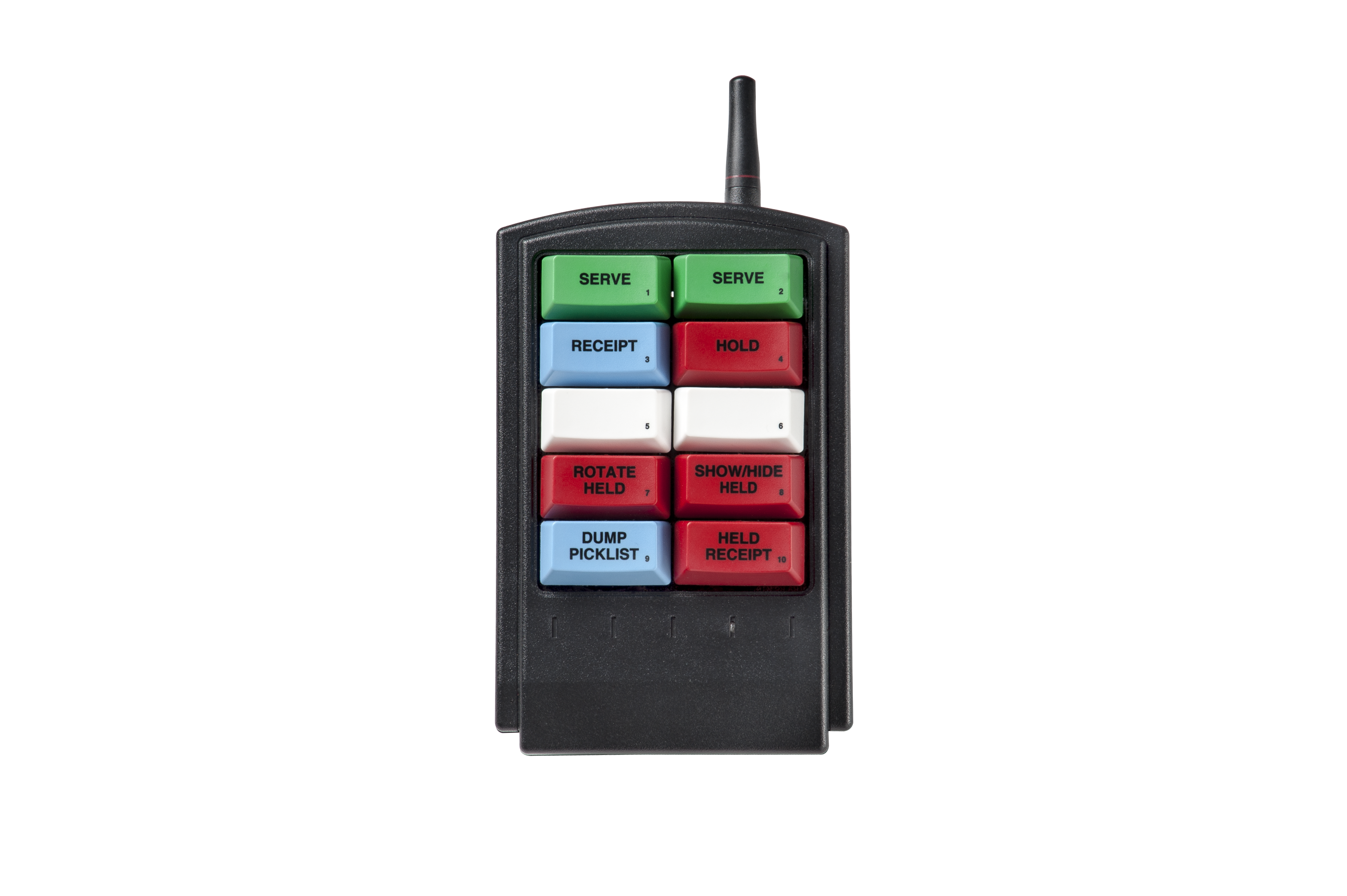

10 Key Wired and Wireless Bump Bars

Key Features:
• Interfaces with your current kitchen video system
• High quality and aordable
• Easy installation
• Available with wired or wireless interfaces
• Mechanical key switches for dependable, durable operation
• Splash-proof design provides protection to components
• Standard and custom mounting solutions available
• Optional features such as integrated display available; contact us for more information

Interfaces:
• Wired: RS232 (RJ11 Plug)
• Wireless: custom wireless protocol between transmitter ad receiver

Mechanical:
• Number of keys:
   Wired/Receiver: 10 keys, Transmitter: 6 keys
• Key strokes life: 20 to 50 million cycles

Other:
• Storage temperature: -40C to +70C
• Operating temperature: 0C to +70C
• Dimensions: Wired: 6.4 x 4.1 x 1.3 in (163 x 104 x 33mm)
   Receiver: 7.8 x 4.1 x 1.3 in ( 198 x 104 x 33 mm)
   Transmitter: 4.4 x 2.6 x 1.1 in (112 x 66 x 28 mm)
• Weights:
   Wired: 0.44 lbs (200g)
   Receiver: 0.495 lbs (225g)
   Transmitter: 0.235 lbs (107g)
